What is a Canyonite Gemstone?
Rare Arizona Gemstone Science.

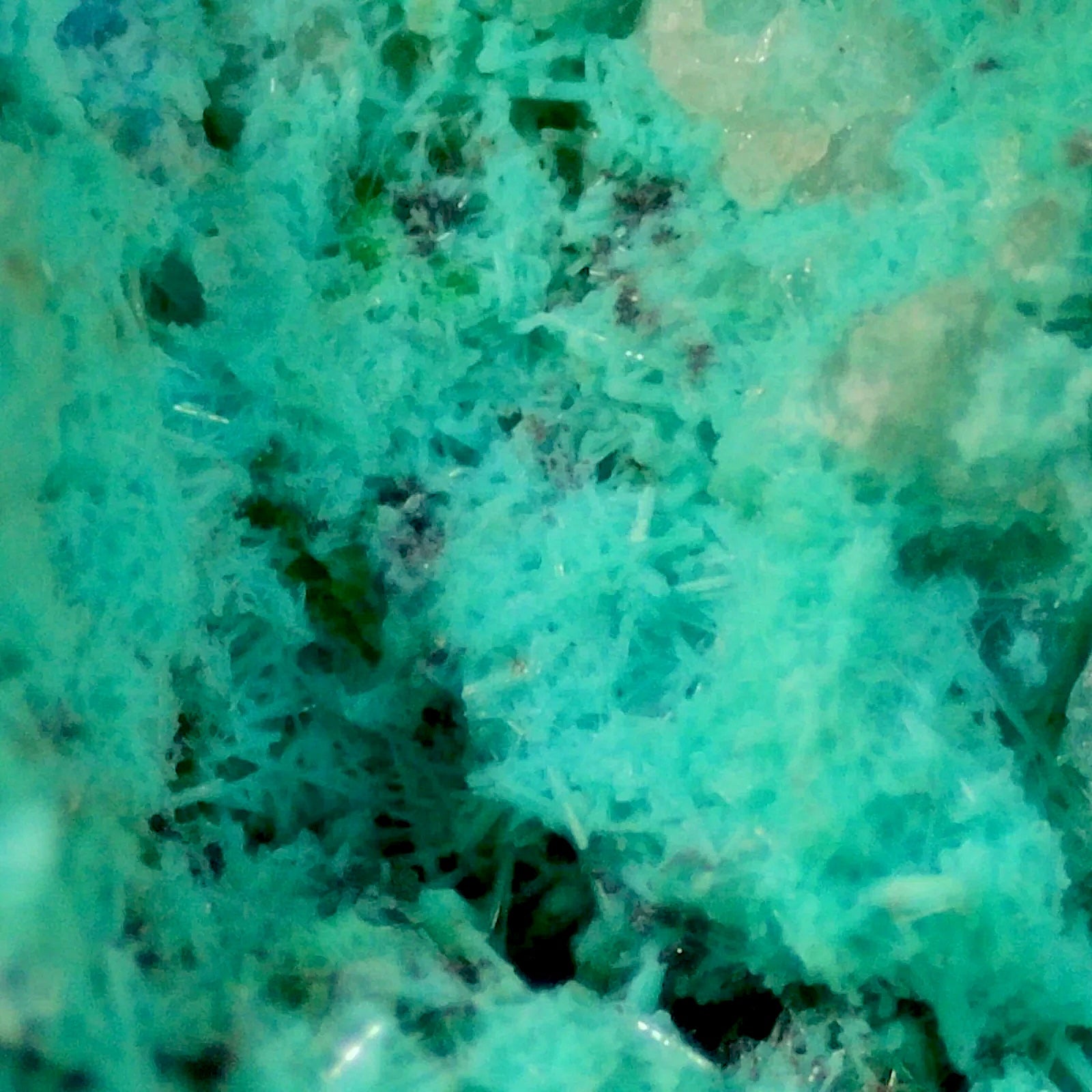

Canyonite is a chalcedony-hosted secondary copper mineral assemblage documented in oxidation-zone environments in southern Arizona. Translucent druzy chalcedony preserves minerals including papagoite, ajoite, shattuckite, chrysocolla-type mineralization, and brochantite within a microcrystalline silica framework. As a result, Canyonite provides a specimen-scale record of mineral growth preserved within silica during active supergene processes.
Mineral growth appears to have occurred alongside episodic silica deposition, enabling internal crystal relationships to remain visible after cutting. This preservation style distinguishes Canyonite from more common occurrences where similar minerals develop as surface coatings or fracture fillings.
Representative specimens have been analytically characterized using Raman spectroscopy and X-ray diffraction, confirming the mineral assemblage present within the material.
Its Elemental Beginning

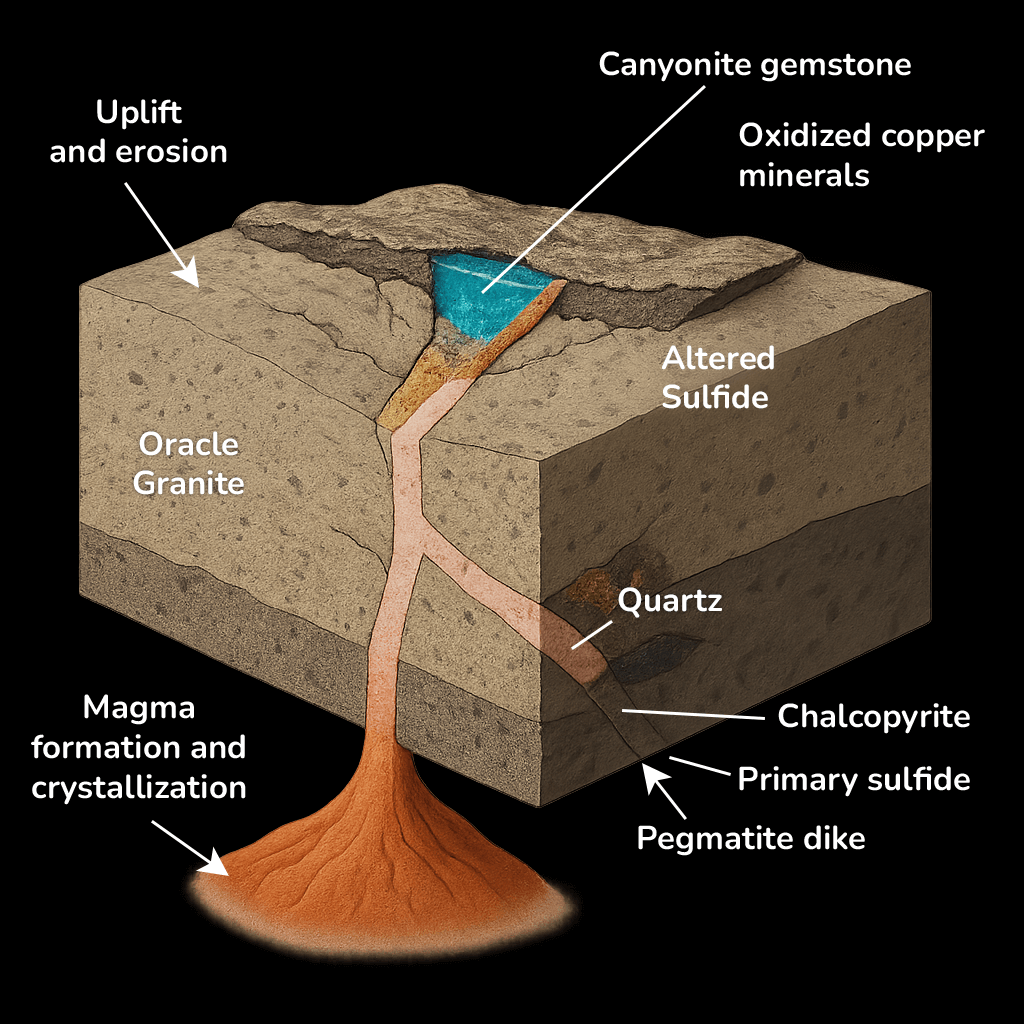

Beneath the landscapes of southern Arizona, Canyonite begins not in molten depths but in the slow transformation of existing rock. Fractures and porous zones within copper-bearing deposits became pathways for mineral-rich groundwater, where silica and copper moved together through evolving oxidation-zone environments. Within these quiet chemical systems, secondary minerals formed, dissolved, and re-formed over extended periods of time.
As silica accumulated, chalcedony developed around growing mineral surfaces, gradually preserving delicate crystal textures and relationships. Canyonite emerges from this interplay between fluid movement, mineral precipitation, and silica sealing — a record of geological processes unfolding step by step rather than a single moment of formation.
The resulting material reflects Earth’s capacity to organize complexity through repetition: mineral growth, enclosure, and preservation combining to produce patterns that appear both natural and precise, where geological process gives rise to visual structure.
Water, the Silent Alchemist
No mechanical force shaped Canyonite. Instead, groundwater moving through copper-bearing rock slowly reorganized the material from within. Mineral-rich fluids transported dissolved copper and silica through fractures and porous zones, where changing chemical conditions triggered cycles of dissolution, precipitation, and replacement.
Over extended timescales, sulfide minerals altered, secondary copper phases formed, and chalcedony accumulated around growing crystal surfaces. Silica deposition reduced permeability and enclosed mineral textures, allowing fragile growth relationships to persist within a translucent framework.

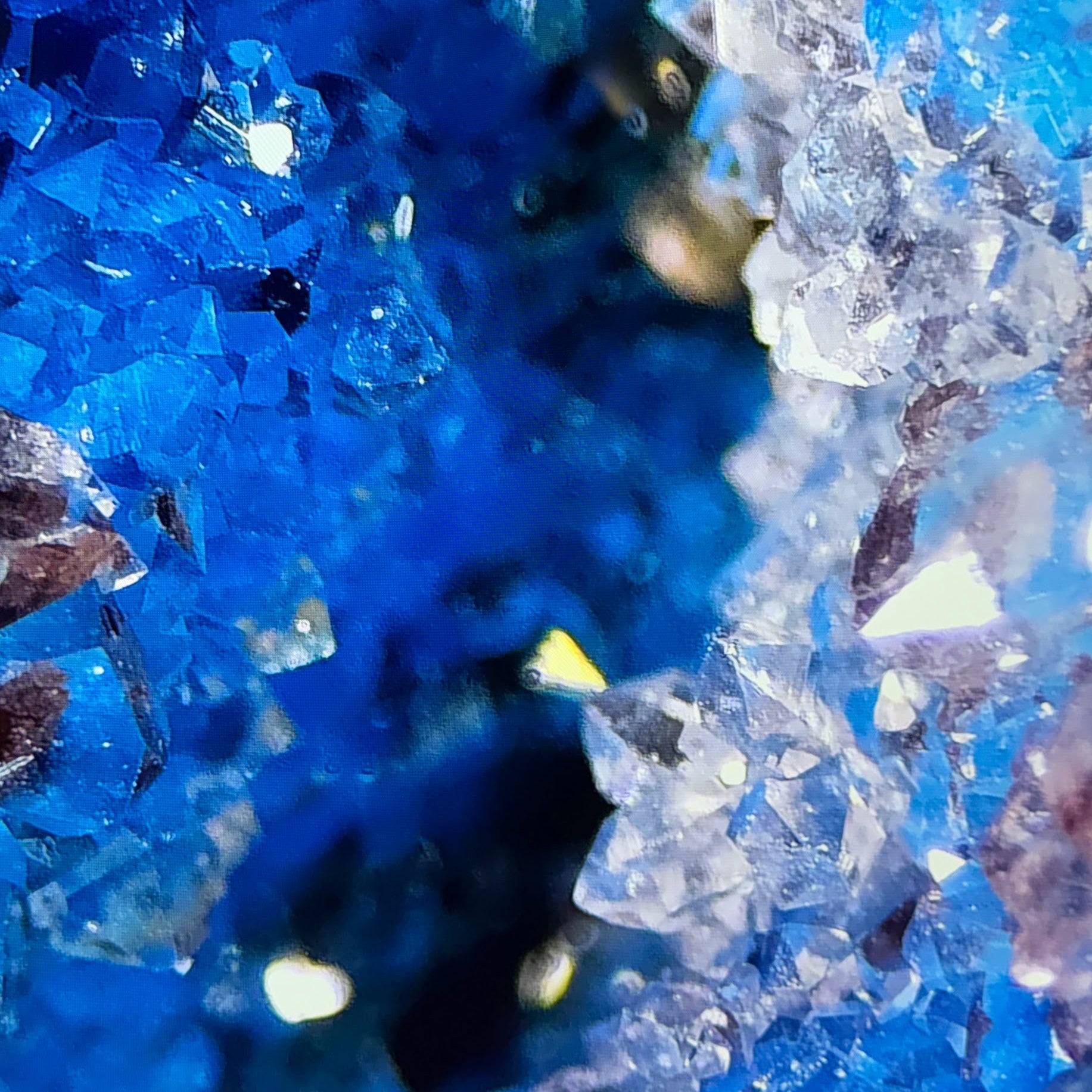

The colors associated with Canyonite — blue, teal, green, and indigo — reflect variations in copper mineral composition and distribution within the silica host. These hues record the chemical evolution of the environment, preserving a visual history of fluid movement, mineral formation, and gradual stabilization within the oxidation zone.

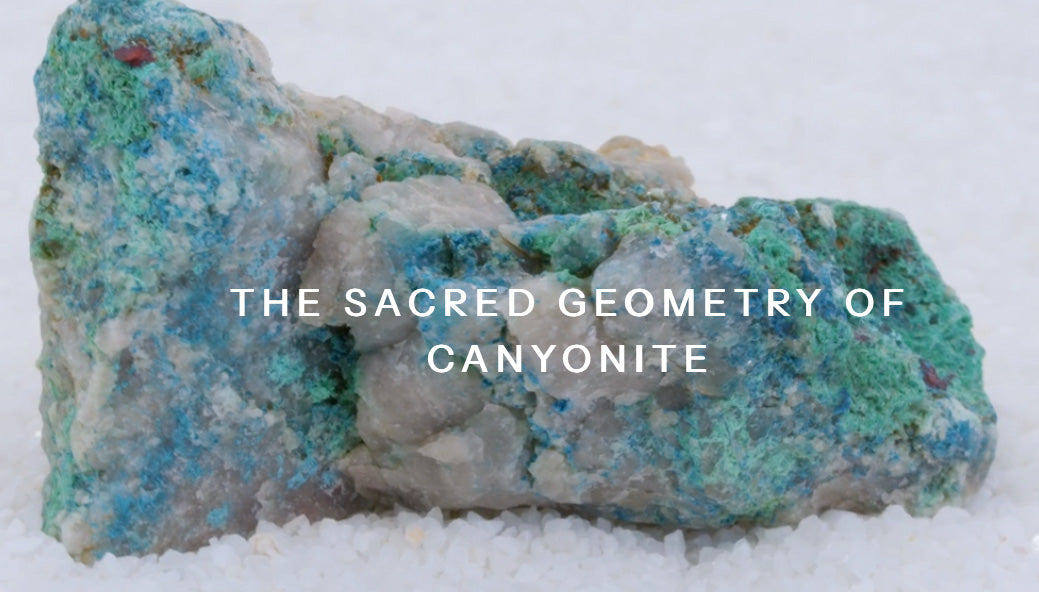

Geometry of Growth
Order within Canyonite emerges from the geometry of mineral growth. The chalcedony matrix — composed of interlocking fibrous microcrystalline quartz — provides a dynamic framework in which secondary copper minerals nucleate, expand, and become preserved. Rather than forming randomly, these minerals follow crystallographic constraints, diffusion pathways, and open-space growth conditions that produce recognizable geometric textures.

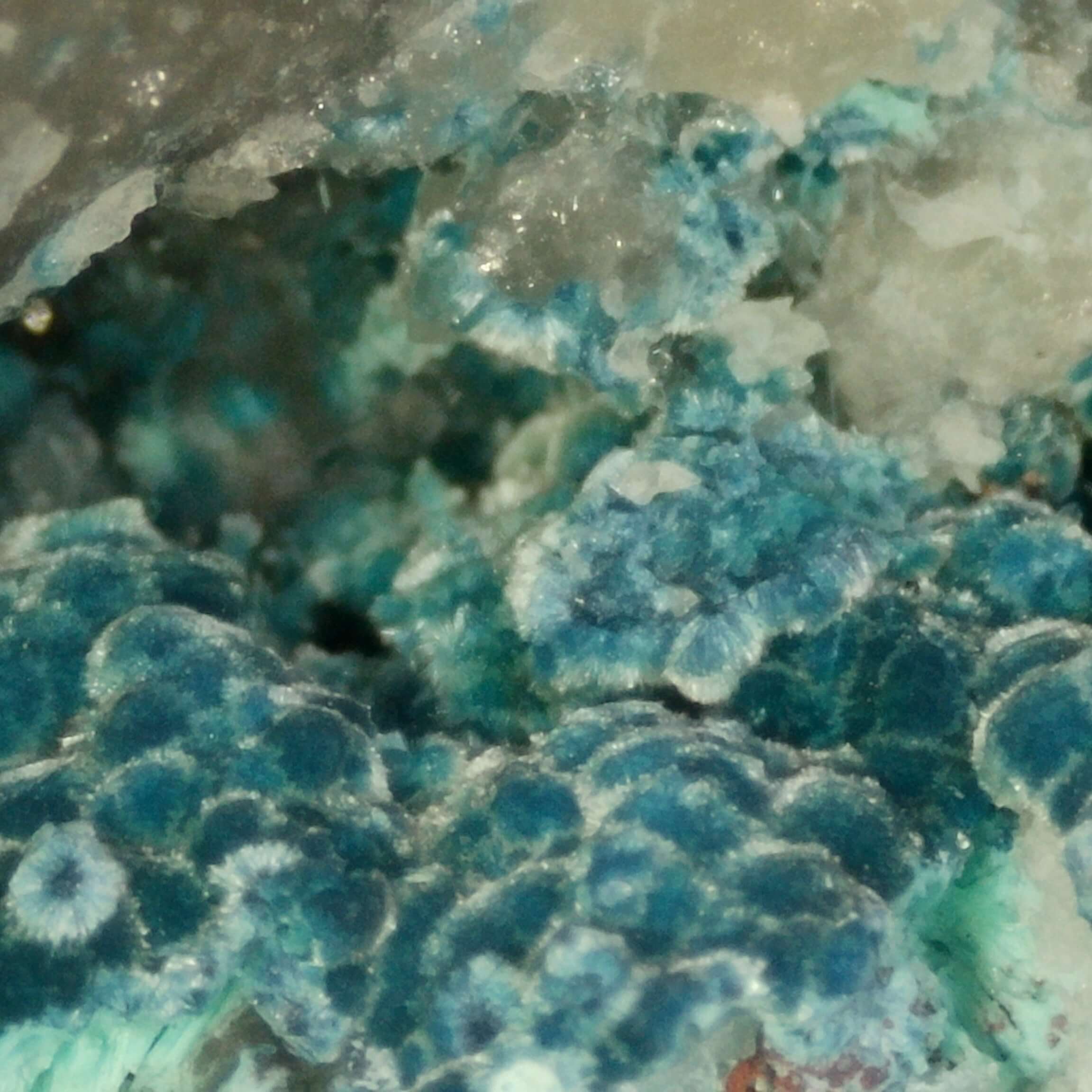

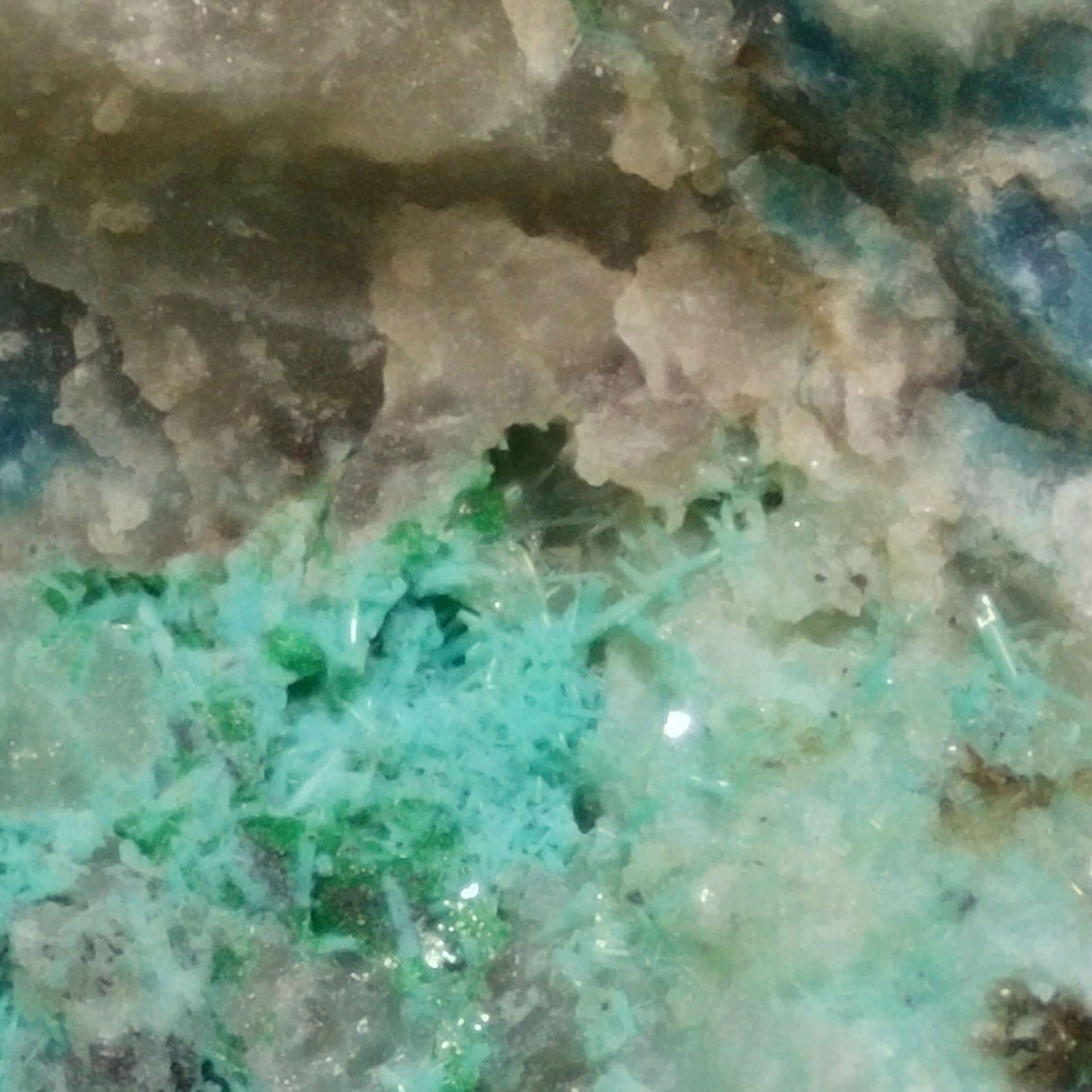

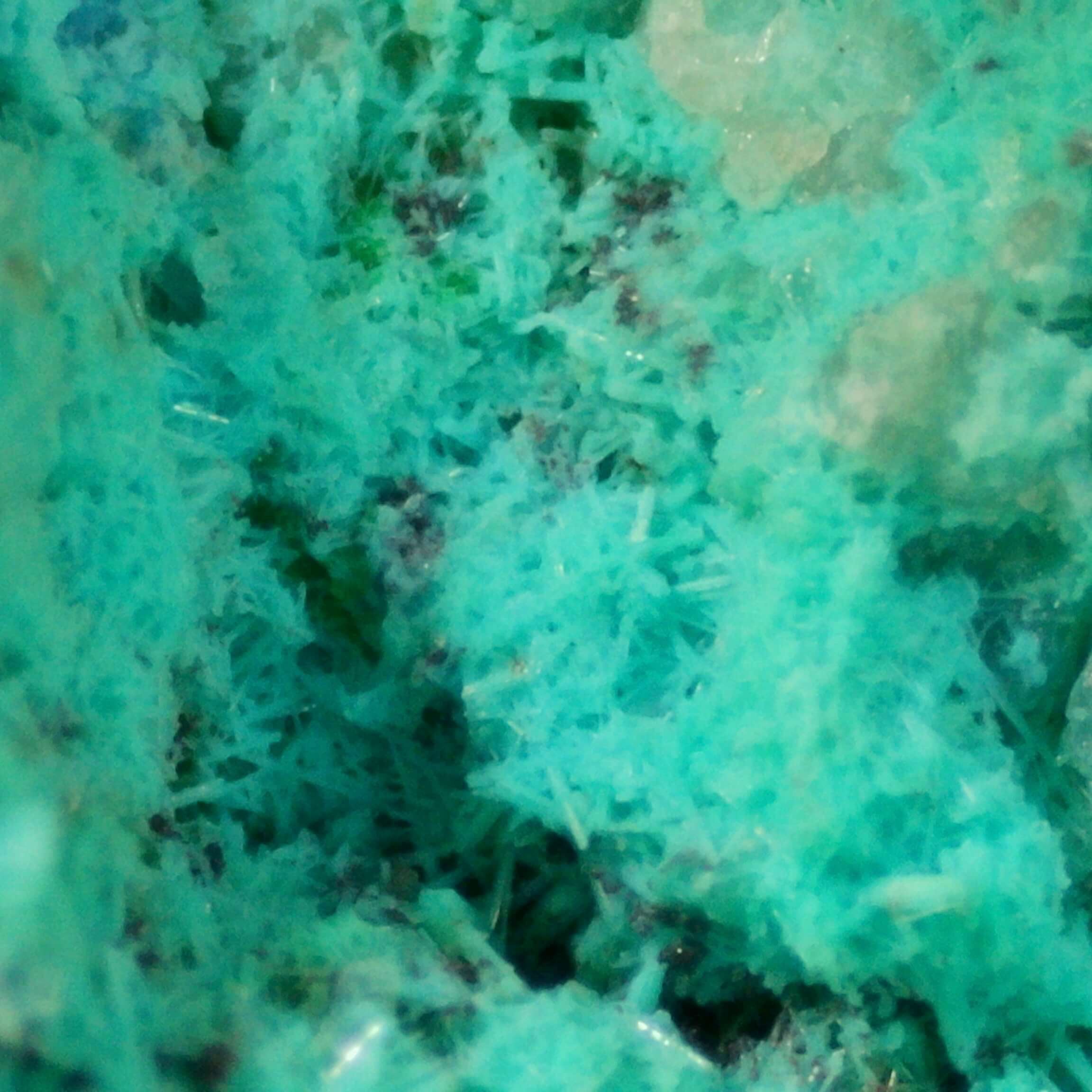

Specimens commonly display radial sprays, botryoidal surfaces, branching structures, and crystalline faces that reflect the inherent symmetry of the minerals involved. Quartz contributes hexagonal symmetry at the structural level, while copper minerals introduce contrasting growth habits shaped by local chemistry and available space.
These recurring patterns illustrate how complex visual structure can arise from simple physical rules — nucleation, growth, enclosure, and repetition — allowing Canyonite to reveal mineral geometry at specimen scale without the need for destructive analysis.
Authenticity
Canyonite reflects geological processes that cannot be replicated through conventional synthetic methods. The material forms through prolonged interaction between groundwater chemistry, mineral precipitation, and silica deposition, producing internal textures and mineral relationships that record environmental history rather than engineered design.
Variation between specimens — including differences in mineral distribution, color zoning, and textural sequence — is consistent with natural formation within dynamic oxidation-zone systems. These features provide observable indicators of origin and distinguish Canyonite from manufactured or assembled materials.
Analytical methods such as Raman spectroscopy and X-ray diffraction further support the identification of mineral phases present within representative specimens, allowing the material to be evaluated through established mineralogical techniques. Authenticity therefore derives from reproducible geological processes, documented mineral assemblages, and the preserved record of mineral growth within silica.
Mineral Composition
Each Canyonite specimen contains a unique combination of secondary copper minerals preserved within chalcedony, with mineral composition and spatial relationships shaping its color, texture, and optical behavior.
Silica Matrix (SiO₂)
The silica matrix consists of microcrystalline quartz built from interconnected silicon–oxygen tetrahedra, forming a fibrous framework that supports mineral inclusion and long-term preservation.
Copper Compounds
Copper silicate, oxide, sulfate, and carbonate minerals preserved within the silica matrix produce Canyonite’s distinctive blue and green color range, with tonal variation controlled by mineral type, concentration, and spatial relationships.
Trace Elements
Trace elements including iron, aluminum, and minor accessory constituents contribute to subtle color variation, mineral stability, and the chemical environment in which the assemblage formed.
Spectroscopy Analysis
Light and Crystal Interaction
Canyonite’s optical character arises from light passing through a translucent chalcedony matrix containing preserved mineral inclusions. The microcrystalline silica framework diffuses light, while copper-bearing phases create localized color and contrast that enhance depth and pattern.
Spectroscopic analysis supports identification of the mineral assemblage and chemical composition associated with these visual features, linking optical variation to differences in mineral distribution, texture, and silica structure.

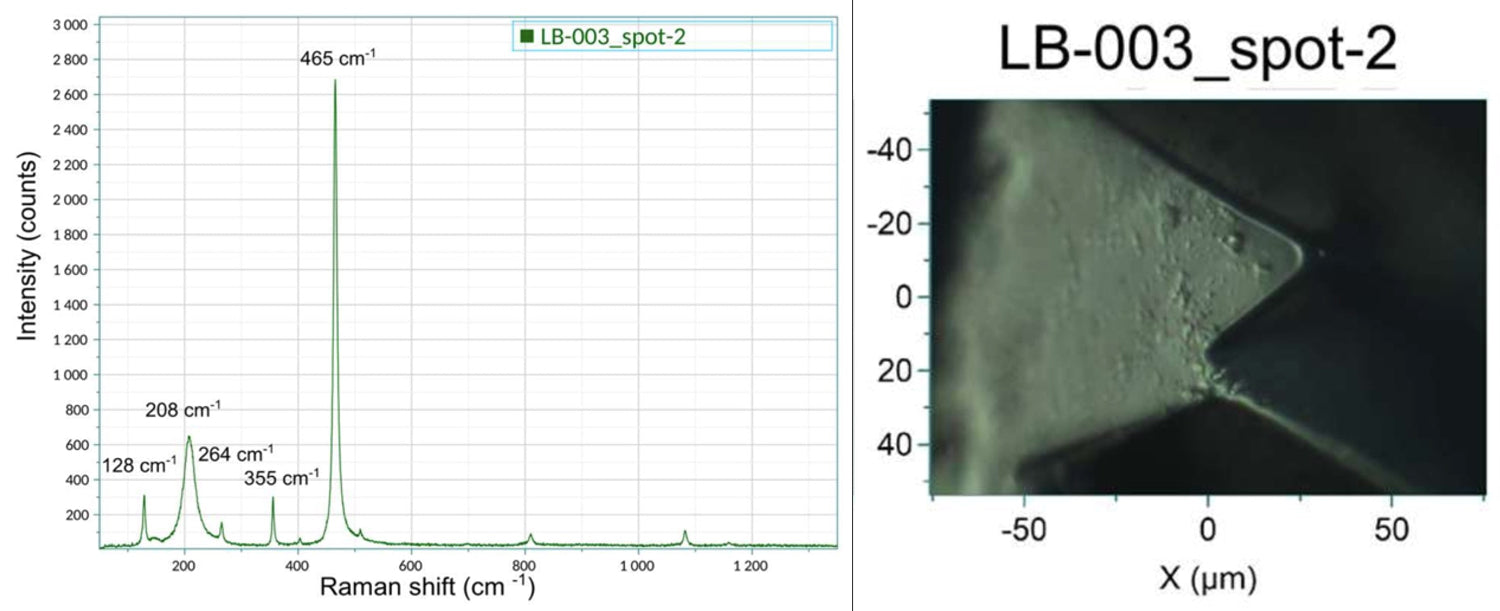

Canyonite Raman spectrum from crystal 2 in LB-003 exhibiting peaks characteristic of chalcedony (quartz).

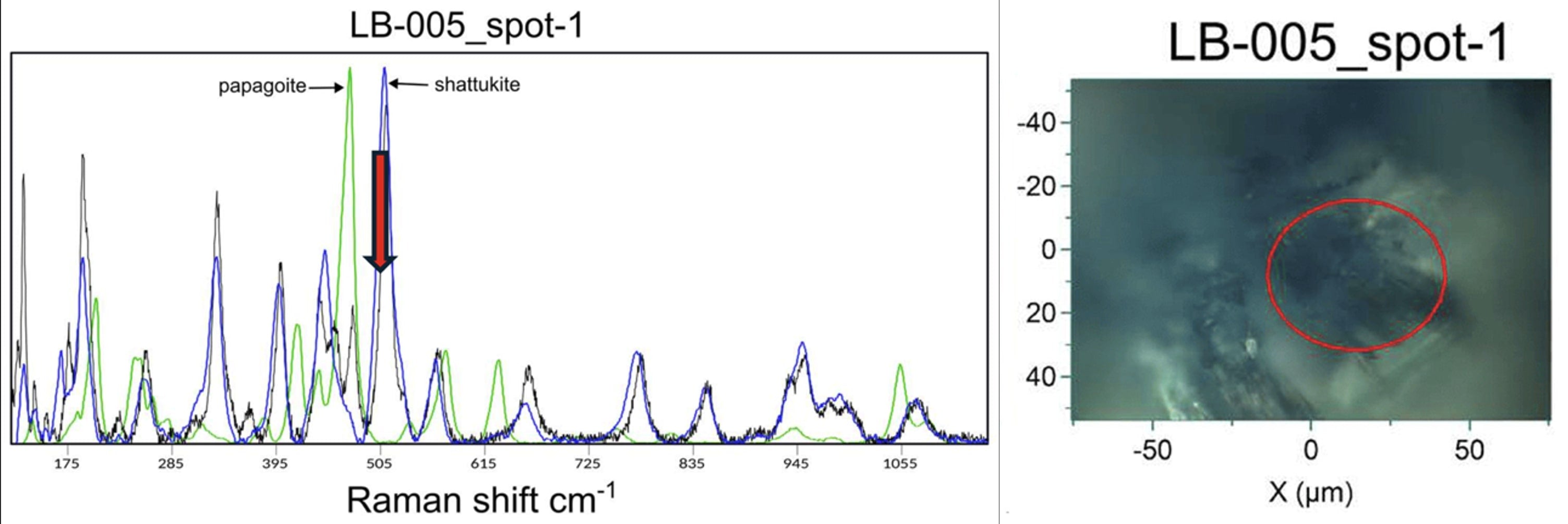

CrystalSleuth results showing background corrected Raman spectra from the 20 s analysis of LB-005 spot 1 shown in black, overlapping with spectra for shattuckite (blue), and papagoite (green), Red arrow shows peak associated with papagoite, which is present.

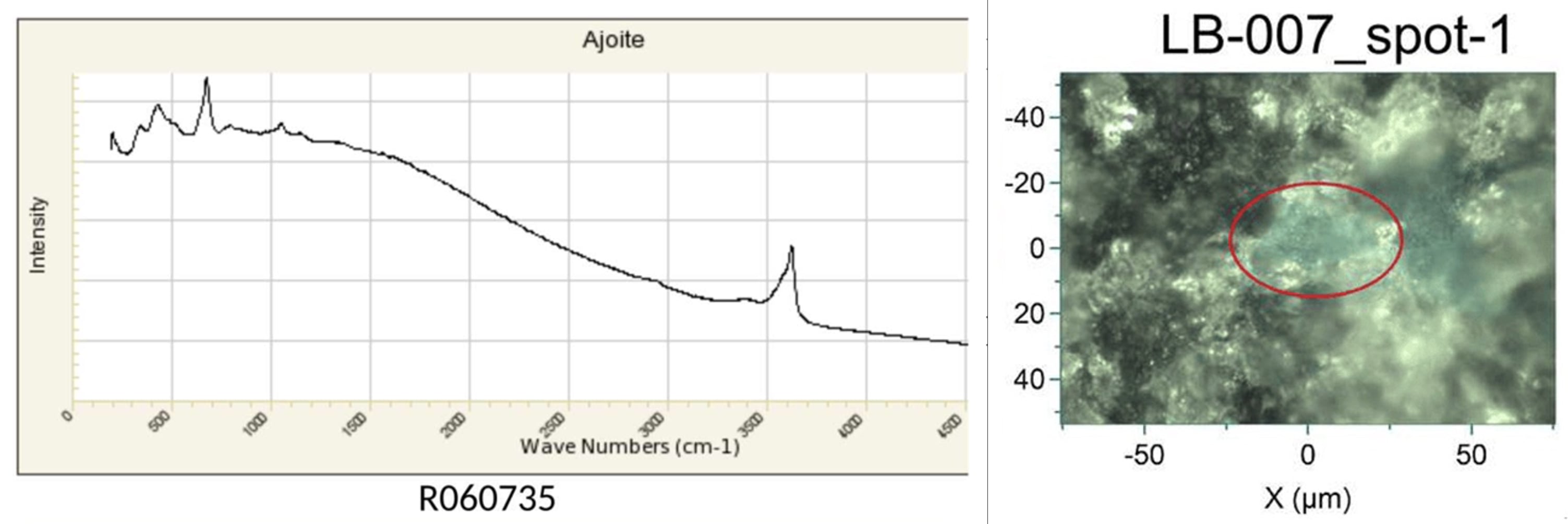

Spectra of ajoite, apachite and chrysocolla from Ruff database (R060735) not corrected for background fluorescence and a comparative spectrum from LB-007 spot-3, which shows a similar fluorescence than ajoite with the highest peak at low wavenumbers and decreasing fluorescence at higher wavenumbers.Figure LB-007_spot-1 shows reflected light photomicrographs at 50x magnification of representative sample spots analyzed. Spectra were collected on both lighter and darker points on each sample. Spots analyzed ranged from a few tens of micron crystallites to microcrystalline.
Further comparison of the raw spectrum for sample LB-007 spot 1with the raw spectra for ajoite, apachite, and chysocolla retrieved from Rruff database (left) shows that all spectrum exhibit background fluorescence and that background fluorescence measured closely resembles that of ajoite.
Ramen Test Date: 06/13/2025
- Samples: 3 rocks, primarily chalcedony (quartz) intergrown with copper silicate minerals of variable shades of blue.
- Question: Determine if the minerals papagoite or ajoite are present.
- Work scope: Analyze 4-5 samples in 4 h using the 532 nm and 266 nm lasers focusing on the dark blue and light blue minerals.
Method:
Raman spectroscopy is a non-destructive method that uses the interaction of light with molecular vibrations within a solid material or a liquid or gaseous fluid. It can provide detailed information about chemical structure, composition, crystallinity and molecular interactions, thus finding broad applications in geologic, life, pharmaceutical and material sciences. Here we used a 532 nm Nd-YAG laser and a grating of 1800 grooves/mm with a spectral resolution of ~0.5 cm-1. The instrument was calibrated using the Horiba SP-RCO inline calibration standard.
References:
- Frost, R.L. and Xi, Y., 2012. Raman spectroscopic study of the copper silicate mineral apachite Cu9Si10O29· 11H2O.
- Spectroscopy Letters, 45(8), pp.575-580.
- Frost, R.L. and Xi, Y., 2013. Is chrysocolla (Cu, Al) 2H2Si2O5 (OH) 4· nH2O related to spertiniite Cu (OH) 2?
—A vibrational spectroscopic study. Vibrational Spectroscopy, 64, pp.33-38.
Ongoing Research
Ongoing study of Canyonite focuses on documenting its mineral assemblage, textural sequences, and formation conditions through mineralogical and gemological analysis. Research integrates observational work with analytical methods to better understand how silica deposition preserves secondary copper mineralization.
Crystal Structure and Physical Properties
Study of Canyonite includes examination of how mineral inclusions and the chalcedony framework influence physical properties such as optical behavior, spectral response, and structural stability. Variations in mineral composition and microstructure affect how the material interacts with light and electromagnetic measurement techniques used in mineral characterization.
These investigations focus on understanding how silica-hosted mineral assemblages express measurable physical signatures, providing insight into formation conditions and preservation processes rather than proposing new mineralogical categories.
Raman Spectroscopy

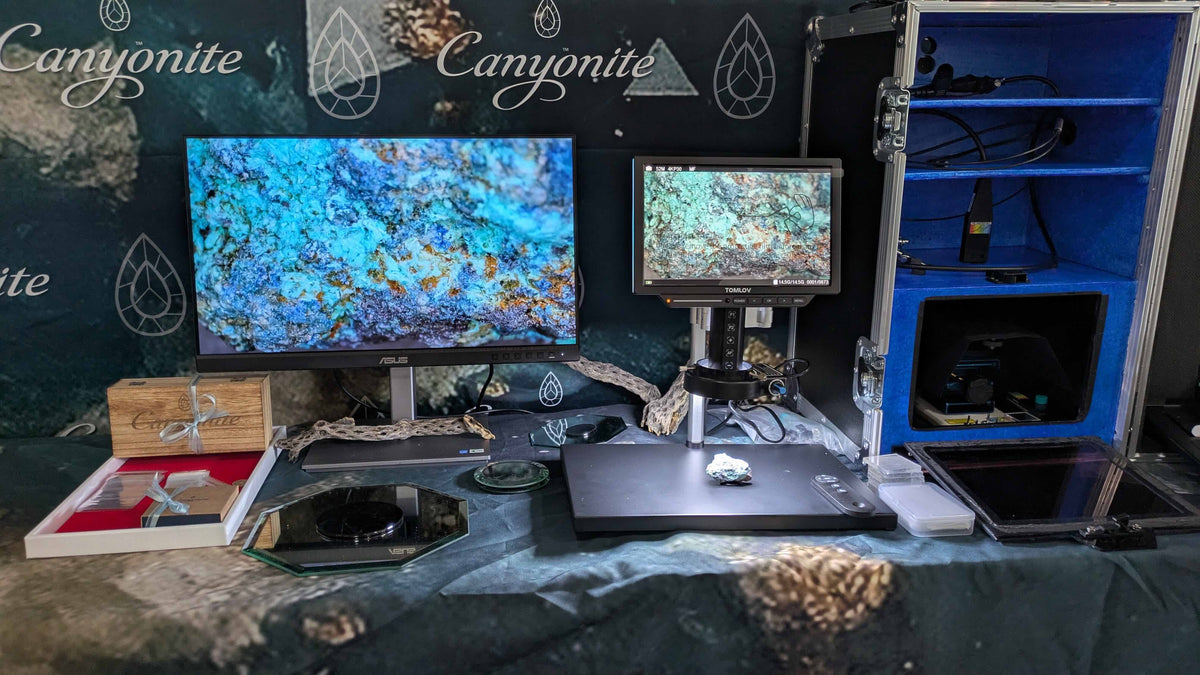

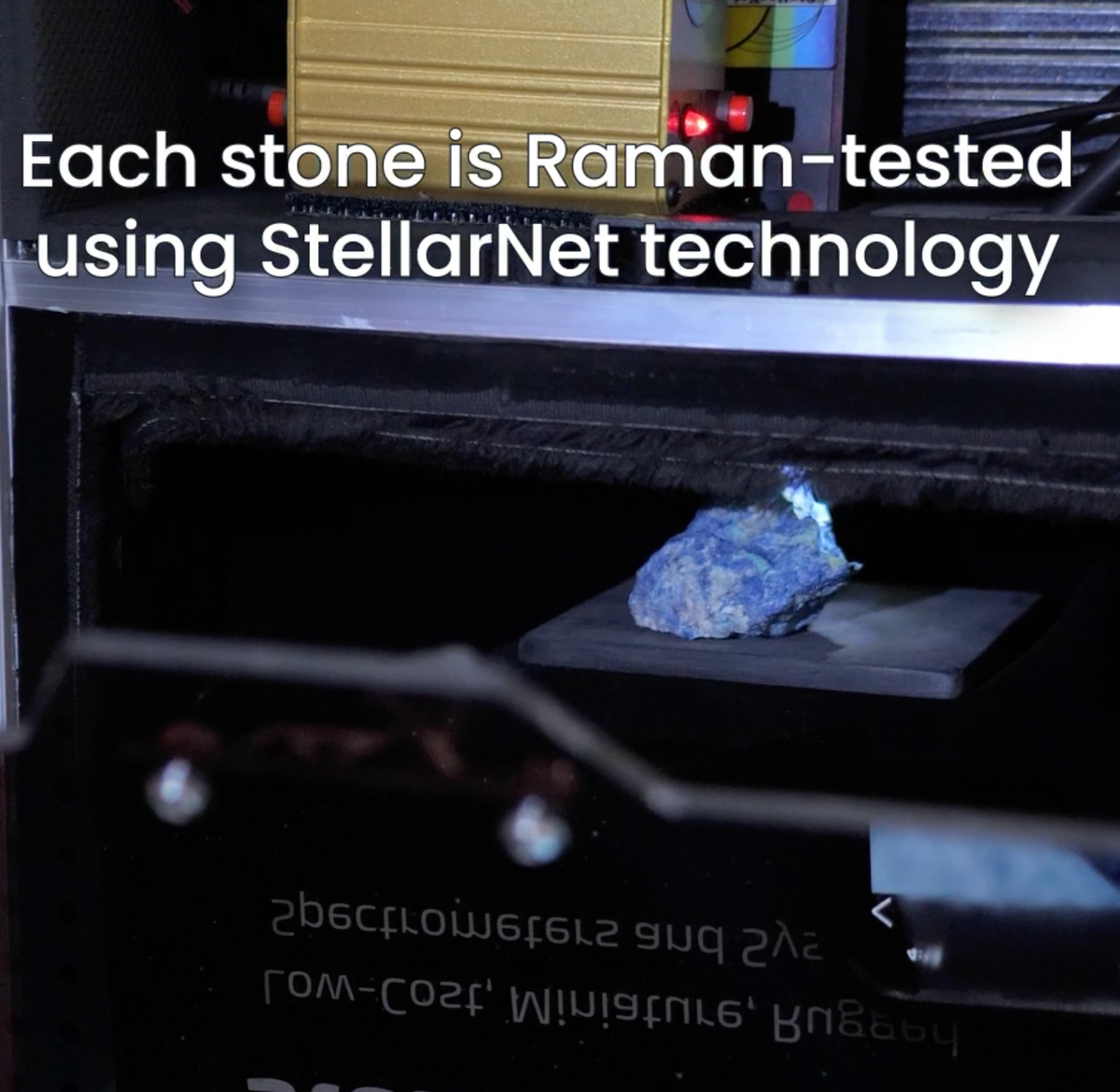

Raman spectroscopy is used to identify mineral phases preserved within Canyonite by comparing measured vibrational spectra with established reference databases. This technique allows characterization of copper-bearing minerals and silica components present within representative specimens.
Raman analysis supports assemblage-level interpretation by helping distinguish mineral phases, evaluate textural relationships, and refine understanding of formation within silica-hosted oxidation-zone environments.
X-Ray Diffraction
X-ray diffraction (XRD) is used to determine the crystalline phases present within Canyonite by analyzing diffraction patterns produced by ordered atomic structures. Comparison with reference data allows confirmation of mineral components within the assemblage and helps distinguish crystalline phases from the surrounding silica framework.
XRD provides complementary evidence to spectroscopic methods, supporting mineral identification and characterization of the material at the assemblage level.
Scientific Resources
Documentation, imagery, and analytical materials related to Canyonite research. Resources focus on mineral identification, textural interpretation, and formation analysis, supporting ongoing study of the assemblage and its preservation within silica-hosted oxidation-zone environments.
Formation Analysis
Geological documentation outlining the proposed formation sequence, mineral relationships, and silica sealing processes associated with Canyonite material. Reports synthesize observational data with analytical results to support interpretation of paragenetic development.
Microscopy Images

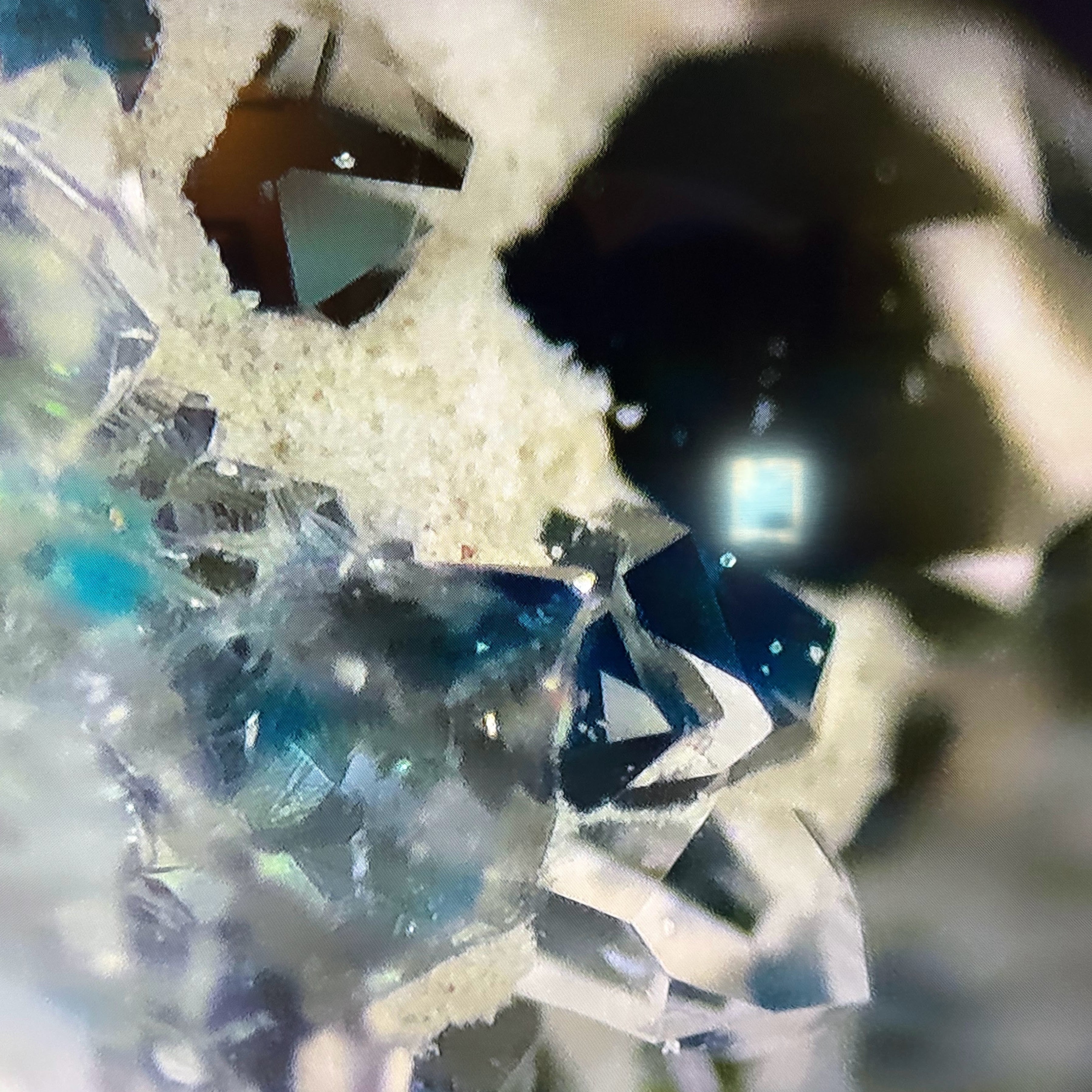

High-resolution optical and microscopic imagery capturing mineral textures, inclusion relationships, and silica framework structure across representative specimens. These images support visual analysis of growth sequences and preservation mechanisms.
Spectroscopy & Measurements
Representative spectroscopic and diffraction datasets used for mineral phase identification and assemblage characterization. Measurements include Raman spectroscopy, X-ray diffraction, and related analytical documentation supporting mineralogical interpretation.
Chemical Composition
Canyonite consists of a silica-dominated matrix (SiO₂) hosting a variable assemblage of secondary copper minerals formed under oxidation-zone conditions. Copper-bearing phases may include silicates, sulfates, oxides, and carbonates, with representative minerals such as papagoite, ajoite, shattuckite, chrysocolla-type material, brochantite, and related phases occurring within the chalcedony framework.
Minor elemental components — including iron, aluminum, and accessory trace elements — influence mineral stability, color variation, and local geochemical conditions during formation. Because Canyonite represents an assemblage rather than a single mineral species, overall chemical composition varies between specimens according to mineral distribution and textural relationships within the silica host.
